The AI Agent Strategy Playbook: 10 Use Cases & Architectures That Scale (2025 How-to Guide)

What makes an AI agent different from last year's chatbots? It comes down to four main things:

1. Planning & Autonomy – the model decides what to do next instead of waiting for a human menu click.
2. Tool Use – it calls live APIs (software interfaces that connect different systems), databases, or even a browser to gather facts and execute tasks.
3. Memory – it keeps track of context so conversations and workflows don't reset every time you type.
4. Multi-step Reasoning – Breaks down complex tasks into smaller steps, completing each one before moving to the next (like a human would), rather than giving just one simple response.

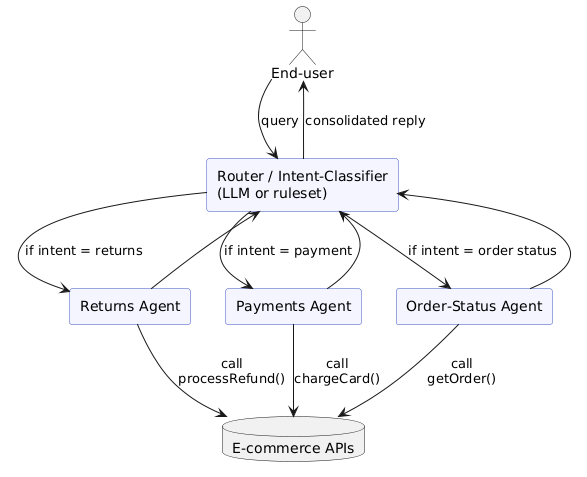

1. Router → Specialist Sub-agents

This pattern uses a "traffic controller" agent that analyses the user's request and routes it to one of several domain-specific agents. Each sub-agent handles a narrow task (like returns, payments, or order status).

Example: Klarna's support assistant classifies customer intent and delegates to dedicated agents trained for each category, speeding up resolution and reducing confusion.

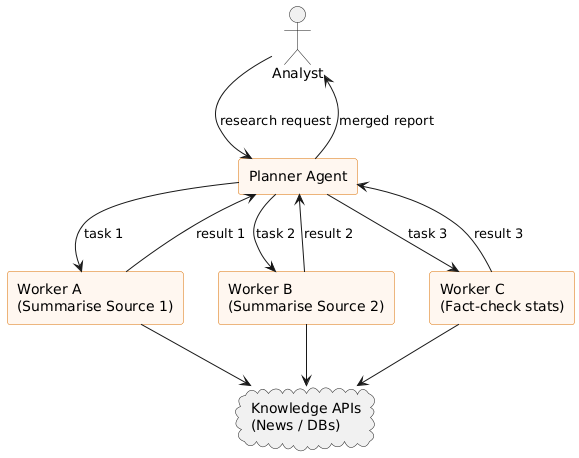

2. Planner + Parallel Workers

In this setup, a central planner agent breaks down a big problem into smaller ones and delegates these to a team of helper agents that work in parallel. Once the workers return their results, the planner consolidates the outcome.

Example: Anthropic's research mode spins up multiple Claude agents to fact-check or summarise different sources simultaneously, then merges the findings into a single report.

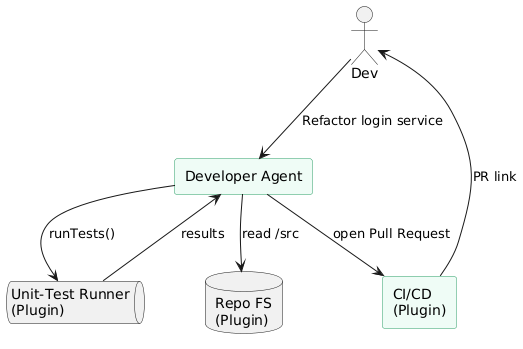

3. Single Agent + Skill Plug-ins

A single powerful agent is paired with a suite of callable tools (or "skills") exposed through code. These can include internal APIs, file systems, databases, or even compilers — anything the agent can invoke programmatically.

Example: Amazon Q Developer uses plugins to run unit tests, check repo files, and open pull requests, all from a single conversation window.

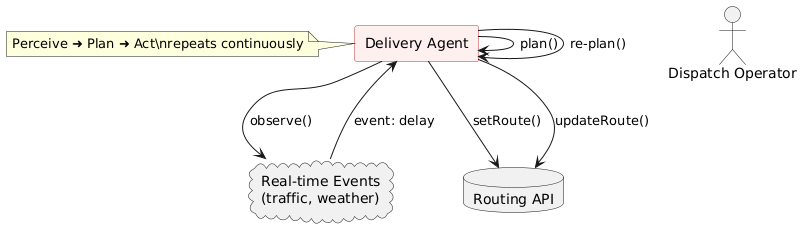

4. Perceive → Plan → Act Loop

For real-time or dynamic environments, agents use a continual loop: observe the world, reason about the best next step, and act accordingly. Then repeat. This allows them to adapt to changes on the fly.

Example: DHL's delivery optimisation agents re-plan routing when they detect delays. NVIDIA's game characters also follow this loop to respond naturally in gameplay.

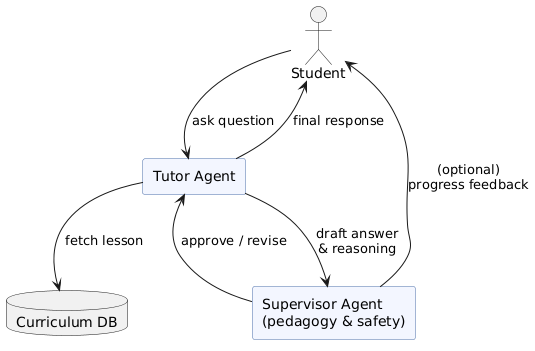

5. Supervisor / Pedagogy Monitor

In sensitive domains like education or healthcare, a second agent is tasked with oversight. It can steer or overrule the main agent if it detects errors, bias, or user confusion.

Example: Khan Academy's Khanmigo uses a supervisory agent to track learning goals and monitor the tone and pacing of the tutoring conversation, ensuring alignment with pedagogical best practices.

These structures are composable — you can start with one and evolve toward multi-agent systems as complexity grows. The key is to think in terms of roles and responsibilities: planner, executor, critic, and router. That way, your system remains interpretable and scalable.

6. And many more patterns too

Under the hood, most successful AI agents follow a few clear structural patterns, each designed to solve particular types of problems. Beyond the foundational setups described above, there are several more advanced agent architectures worth knowing about.

• The Self-Reflection (Critic) pattern has the agent critique its own output before finalising, greatly improving quality and reducing hallucinations.
• Blackboard (Shared-Memory) agents collaboratively build solutions by reading and writing to a central shared state, ideal for problems too complex for one agent alone.
• Meanwhile, Auction-based Allocation lets multiple agents rapidly self-organise by bidding on tasks, perfect for swarms and decentralised workloads.
• The ReAct (Reason-Act) approach explicitly alternates thinking and acting steps, ensuring transparency in decisions.
• Finally, the Evolutionary (Population Search) method involves generating many agent variants, iteratively selecting and improving upon the best performers—a powerful tool for open-ended optimisation tasks.

🔌 Tooling vs Raw Data

One of the biggest decisions is whether to let your agents call APIs (structured tooling), or work from unstructured data like PDFs, spreadsheets, or web pages.

• Tools = safer and more deterministic. You know what happens when the agent clicks "Cancel Booking".
• Data = richer and more flexible. Great for research, discovery, or open-ended dialogue.

Many of the strongest systems combine both. For example, an agent might read your product catalogue (data) and then place an order via your backend API (tool).

🔐 Access and Scope

Giving agents full access to your database or APIs sounds powerful — but it also increases risk. We recommend wrapping data behind "guardrails":

• Use permission layers (per-user or per-agent)
• Throttle sensitive actions (e.g. payments, cancellations) behind approvals or sanity checks
• Track what the agent saw and did to enable easy debugging

🧠 Memory vs History

Most useful agents need to remember things across interactions: what the customer said last week, or which draft you approved yesterday. This could be handled with:

• Context windows – short-term memory (like a person's working memory during a conversation - cheap but limited in how much information can be held at once)
• External memory – long-term structured recall via specialized databases that store and retrieve information (like a sophisticated filing system that can find relevant documents based on meaning, not just keywords)

Klarna's assistant, for example, doesn't just answer in the moment — it retrieves past conversation threads and order history to offer personalised help.

🔍 RAG and Vector Storage Strategies

One of the most powerful patterns for agent memory is Retrieval-Augmented Generation (RAG) — where agents don't just rely on their training data, but actively search through your organisation's knowledge base to find relevant context before responding.

The core concept is simple: convert your documents, conversations, and data into mathematical representations (called "embeddings"), store them in a specialized database, then let your agent search through them by meaning rather than exact word matching. Think of it like having a super-smart librarian who can find relevant information even when you don't know the exact words to search for.

🏗️ Implementation Approaches

• Naive RAG – Simple chunking and retrieval. Fast to set up but can struggle with complex queries that span multiple documents.
• Hierarchical RAG – Chunks documents at multiple levels (paragraph, section, document). Better for complex reasoning but more expensive to maintain.
• Hybrid RAG – Combines vector search with traditional keyword search and graph relationships. Most robust but requires more engineering.
• Agentic RAG – Uses multiple agents to plan queries, critique results, and synthesise findings. Powerful for research tasks but can be slow.

⚖️ Key Tradeoffs

• Freshness vs Performance – Real-time indexing keeps data current but increases response time (latency). Most teams batch updates daily or weekly to balance speed with accuracy.
• Chunk Size vs Precision – Smaller chunks (100-300 "tokens" or roughly 75-225 words) give precise retrieval but lose context. Larger chunks (1000+ tokens or roughly 750+ words) preserve context but may include irrelevant information.
• Retrieval Depth vs Cost – Retrieving 50+ documents gives comprehensive context but dramatically increases costs (since you pay per word processed). Most production systems retrieve 3-10 chunks to balance thoroughness with budget.
• Embedding Quality vs Speed – High-quality models like OpenAI's text-embedding-3-large produce better semantic understanding but are slower and more expensive than lightweight alternatives.

🎯 When RAG Works Best

RAG shines when your agents need to:

• Answer questions about internal policies, procedures, or documentation
• Reference historical conversations or case studies
• Provide context-specific recommendations based on past similar situations
• Stay current with frequently changing information (product specs, legal updates, etc.)

🚫 When to Skip RAG

RAG adds complexity and cost. Skip it when:

• Your use case is purely transactional (booking, payments, simple workflows)
• The required knowledge fits comfortably in the model's context window
• You need guaranteed consistency rather than nuanced understanding
• Real-time performance is critical and you can't afford retrieval latency

Pro tip: Start with a simple RAG implementation over your most frequently accessed documents. You can always add sophistication later, but getting basic semantic search working quickly will teach you what your agents really need to know.

🧱 Data format strategy

Agents thrive when you feed them clean, structured content. Even just creating JSON or Markdown wrappers around your docs or spreadsheets can dramatically improve results. Where possible:

• Use standard schemas (e.g. ISO dates, known key names)
• Make file and field names human-readable
• Label sensitive fields clearly (e.g. "Do not edit") in comments or metadata

The TL;DR? You don't need to clean your whole dataset. You just need to make the agent's starting point clean, predictable, and actionable. The rest it can learn to ask for.

🎧 Customer support and internal helpdesks

If you have a team answering repeated queries or processing similar requests all day — whether it's IT password resets, HR policy questions, or customer refunds — that's prime territory for agent automation. Agents can handle 60-80% of volume with little human oversight, escalating edge cases when needed.

📋 Admin-heavy, rules-based processes

Think booking systems, onboarding forms, compliance paperwork, and data entry. These processes often involve the same predictable steps and API calls every time. An agent can run them start to finish, calling APIs, sending emails, and filling forms with minimal fuss.

🔍 Personalised data aggregation or insights

When someone needs an answer that's buried across five systems — like "Which of our customers in France bought this last year and still haven't renewed?" — agents shine. They can retrieve data, combine it meaningfully, and present it back in a human-readable form.

📊 Self-service reporting, research, or analytics

Agents can act as research assistants that run reports, investigate competitors, or pull policy summaries from vast knowledge bases. This is ideal for sales, legal, finance, and strategy teams — especially where turnaround speed is more important than perfect formatting.

⚡ Dynamic optimisation and feedback loops

When the environment changes regularly — like delivery routes, pricing strategies, or inventory levels — agents can close the loop by sensing changes, making adjustments, and then monitoring outcomes. These are especially valuable in logistics, marketplaces, and ops-heavy businesses.

In all these cases, what matters is this: agents don't just respond — they act. That ability to make decisions, carry out multi-step processes, and only loop in a human when needed is what separates agent-based systems from traditional automation.

🎯 Start with a focused use case

The best first projects are narrow but high-impact — for example, automating basic IT requests, speeding up sales reports, or triaging support tickets. You'll learn the quirks of agent behaviour without putting sensitive processes at risk.

🛠️ Choose the right model and tools

Depending on your needs, you might build your agent using OpenAI's Assistants API, Anthropic's Claude, open-source frameworks like LangChain or CrewAI, or even your own orchestration layer. The goal isn't just picking a model — it's defining how the agent plans, remembers, and acts across tools.

🔧 Focus on toolability

Rather than giving agents access to everything, think about what APIs, databases, or scripts you can safely expose. You can always add more capability later. A read-only inventory lookup or helpdesk database is often a great first step.

🧪 Test with real-world messiness

AI agents often behave perfectly in test environments and then fail in live use when faced with typos, ambiguity, or partial data. Run pilot programs with real user input early — and watch what breaks. That's where the biggest learning happens.

👁️ Build in oversight and observability

Even with strong models, you need logging, approval workflows, and fallback paths. Most agent platforms let you store full transcripts of decisions and tool calls, which is critical for debugging and trust-building. Start with a "human-in-the-loop" approach and scale autonomy over time.

💭 Think beyond chat

While many agents use chat as their interface, don't stop there. Agents can live inside email workflows, Slack, dashboards, CRMs, or even internal dev tools. The interface is just the entry point — the magic is in what the agent can do once inside your system.

🏗️ The Custom Development Advantage

Direct API Access at Provider Rates — When you build with code, you pay OpenAI, Anthropic, or other providers directly at their wholesale rates. SaaS platforms typically mark up these costs by 2-5x to cover their infrastructure and profit margins. For high-volume deployments, this difference can mean thousands of dollars monthly.

Multi-Model Flexibility — Custom agents can seamlessly combine different models for different tasks. Use the latest complex reasoning model from OpenAI, Claude, for long-context analysis, and local models for sensitive data processing — all within the same workflow. SaaS platforms typically lock you into their preferred model or charge premium rates for model switching.

True Architectural Control — With libraries like LangChain, OpenAI Agents SDK, CrewAI, or AutoGen, you can implement any of the architectural patterns we discussed earlier. Want a Router → Specialist setup with custom memory management? Easy. Need a Perceive → Plan → Act loop with specific tool integrations? You control every component.

🔧 Technical Benefits of Coding Your Own

• Custom Tool Integration — Direct API calls to your existing systems without middleware. No waiting for SaaS providers to add integrations or paying for unnecessary features.
• Data Privacy and Security — Your data stays within your infrastructure. No third-party processing or storage concerns, crucial for regulated industries.
• Performance Optimisation — Fine-tune response times, implement caching strategies, and optimise for your specific use patterns. SaaS solutions are built for the average case, not your edge cases.
• Debugging and Observability — Full visibility into agent decision-making processes. Log every API call, reasoning step, and tool invocation for comprehensive troubleshooting.

📚 Popular Development Frameworks

OpenAI Agents SDK — OpenAI's official SDK for building, deploying, and managing agents using their Assistants API. It provides high-level abstractions for tool integration, memory, and multi-step workflows, making it easy to create production-ready agents with minimal boilerplate. Ideal for teams standardizing on OpenAI's ecosystem and looking for rapid iteration with robust support.

LangChain — The most mature ecosystem with extensive tool integrations and pre-built components. Great for rapid prototyping and production deployments. This is the go-to choice if you'd like to work with multiple AI vendors, but it requires a bit more configuration than the OpenAI Agents SDK.

CrewAI — Specialises in multi-agent coordination. Excellent for implementing the Planner + Parallel Workers pattern with role-based agent hierarchies.

AutoGen (Microsoft) — Focused on conversational multi-agent systems. Perfect for building agent teams that collaborate through natural language.

Haystack — Optimised for RAG and document processing workflows. Ideal when your agents need deep integration with knowledge bases.

Custom Python + Direct APIs — Maximum flexibility using requests, asyncio, and your preferred ML libraries. Best for unique architectures or when you need complete control.

💰 Cost Comparison Reality Check (Approx. Hypothetical Example)

Let's say you're processing 100,000 agent interactions monthly:

• SaaS Platform: $2,000-5,000/month (including markup, platform fees, and limited customisation)
• Custom Development: $400-800/month in direct API costs + development time

The break-even point is typically reached within 2-3 months of development, after which custom solutions offer 60-80% cost savings while providing superior capabilities. Useful when these costs can scale with user growth, or the number of tasks you ultimately delegate to the AI Agents.

⚠️ Current Technical Limitations

• Hallucination and Confidence Gaps — "Hallucination" is when AI generates plausible-sounding but incorrect information (like confidently stating a fake statistic). Despite impressive capabilities, agents can still do this, especially when working with incomplete data or unusual situations. This makes them less suitable for high-stakes decisions without human oversight.
• Context Window Constraints — Most agents have limited "working memory" (like a person who can only hold 7 things in mind at once) that restricts how much information they can process simultaneously. Complex multi-step tasks that require tracking dozens of variables can still overwhelm current systems.
• Tool Integration Fragility — Agents rely heavily on APIs and external tools, making them vulnerable to changes in those systems. A simple API update can break an entire workflow, requiring constant maintenance and monitoring.
• Reasoning Depth Limits — While agents excel at pattern recognition and routine problem-solving, they struggle with deep causal reasoning, creative breakthrough thinking, and tasks requiring genuine understanding of physical or social dynamics.

💼 Business and Deployment Challenges

• Explainability and Trust — Many organisations struggle to explain why an agent made a particular decision, especially in regulated industries. This "black box" problem limits adoption in finance, healthcare, and legal contexts.
• Training Data Bias — Agents inherit the biases present in their training data, potentially perpetuating unfair or discriminatory outcomes in hiring, lending, or customer service applications.
• Cost and Resource Management — Running sophisticated agents can be expensive, especially when they make numerous API calls or require frequent model updates. The economics don't always work for lower-value tasks.

🚀 Where We're Heading: 2025-2030 Predictions

• Specialisation Over Generalisation — Rather than building "do-everything" agents, we'll see more domain-specific agents that excel within narrow contexts. Think medical diagnostic agents, legal research agents, or financial analysis agents with deep, specialised knowledge.
• Hybrid Human-AI Workflows — The future isn't fully autonomous agents, but rather seamless collaboration between humans and AI. Agents will handle routine tasks and data processing, while humans focus on creative problem-solving, relationship building, and strategic decision-making.
• Federated Agent Networks — Instead of single super-agents, we'll see networks of specialised agents that can communicate and coordinate with each other. A customer service agent might seamlessly hand off to a billing agent, then to a technical support agent, all within one conversation.
• Continuous Learning and Adaptation — Next-generation agents will learn from every interaction, building institutional memory and adapting to your organisation's specific context over time. This personalisation will make them dramatically more effective than today's general-purpose models.
• Regulatory and Ethical Frameworks — By 2027-2028, we expect comprehensive regulations around AI agent deployment, especially in sensitive sectors. This will drive standardisation but also create competitive advantages for companies that build ethical, transparent systems early.
